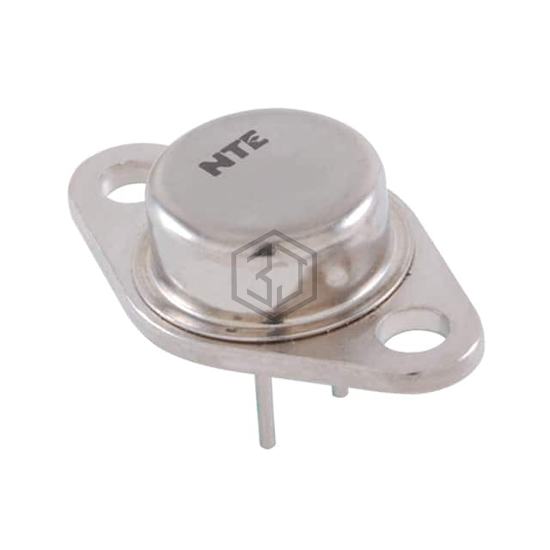

NTE276
SCR 1.25KV TO66
NTE276 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.25KV TO66. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 120°C (TJ), package / case TO-213AA, TO-66-2.
In Stock: 5,223
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.25 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 120 mA |
| Voltage - On State (Vtm) (Max) | 5.3 V |
| Current - On State (It (AV)) (Max) | 5 A |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Off State (Max) | 500 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33A, 80A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 120°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-213AA, TO-66-2 |
| Supplier Device Package | TO-66 |
Frequently Asked Questions
NTE276 is a Thyristors - SCRs manufactured by NTE Electronics, Inc. SCR 1.25KV TO66
The mounting type of NTE276 is Through Hole.
The operating temperature range of NTE276 is -40°C ~ 120°C (TJ).
The package type of NTE276 is TO-213AA, TO-66-2.
