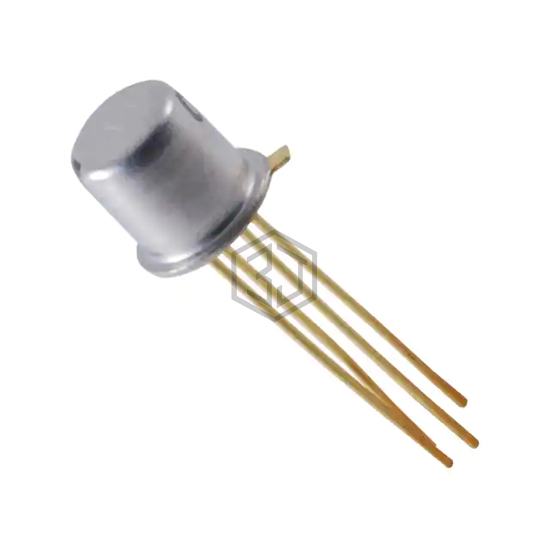

MOSFET N-CHANNEL 25V 50MA TO72
NTE222 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 25V 50MA TO72. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 50mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | - |
| Vgs(th) (Max) @ Id | 4V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3300 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 360mW (Ta), 1.2mW (Tc) |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-72 |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
Submit your RFQ for NTE222 and get a quote within 24 hours.
