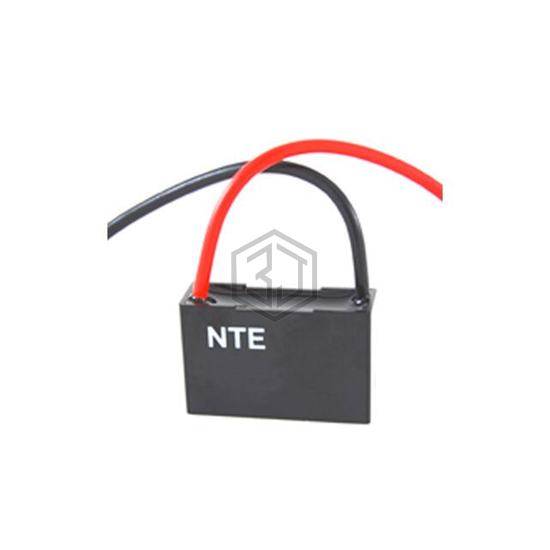

CAP-CEILING FAN 7UFD
CFC-7 is a Film Capacitors manufactured by NTE Electronics, Inc. CAP-CEILING FAN 7UFD. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, voltage rating - ac 250V, package / case Radial.
In Stock: 6,102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7 µF |
| Tolerance | - |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.496" L x 0.748" W (38.00mm x 19.00mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
| Termination | Wire Leads |
| Lead Spacing | 1.299" (33.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1847C570255P2 | Vishay Beyschlag/Draloric/BC Components | MKP 7F 10% 250VAC PITCH 37,5 | 100% | View |
| MKP1848H57080JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 5% 800VDC RADIAL | 100% | View |
| MKP1848H57012KP4 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 10% 1.2KVDC RADIAL | 100% | View |
| MKP1848H57050JK2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 5% 500VDC RADIAL | 100% | View |
| MKP1847H57035JP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 7UF 5% 700VDC RADIAL | 94% | View |
| EEC2G705HWNM07 | Nichicon | CAP FILM 7UF -5% +10% 400VAC RAD | 92% | View |
