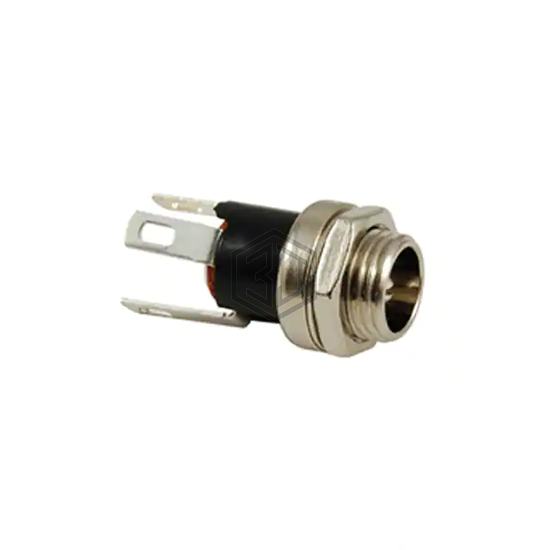

POWER JACK-DC PANEL MOUNT
57-PJ50 is a Barrel - Power Connectors manufactured by NTE Electronics, Inc. POWER JACK-DC PANEL MOUNT. Key specifications: mounting type Panel Mount, Through Hole, voltage - rated 24VDC, current rating (amps) 2 A, termination Solder Eyelet(s).
In Stock: 388
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Number of Positions/Contacts | - |
| Internal Switch(s) | - |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Eyelet(s) |
| Shielding | - |
| Features | Mounting Hardware, Thread Lock |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
