TRANS NPN 40V 30A TO3

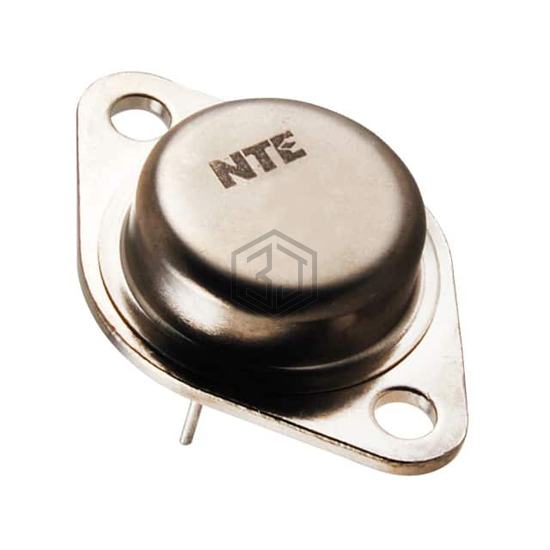

2N5301 is a Transistors - Bipolar (BJT) - Single manufactured by NTE Electronics, Inc. TRANS NPN 40V 30A TO3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-204AA, TO-3, current - collector (ic) (max) 30 A.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 6A, 30A |
| Current - Collector Cutoff (Max) | 5mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 2V |
| Power - Max | 200 W |
| Frequency - Transition | 2MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 |
Submit your RFQ for 2N5301 and get a quote within 24 hours.
