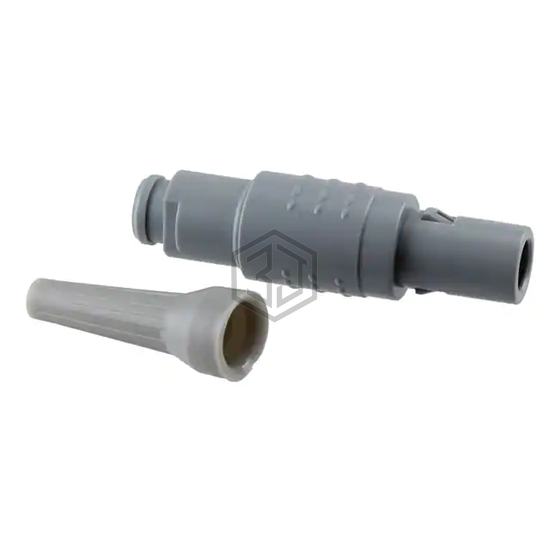

CONN PLUG MALE 9P GOLD SLDR CUP
8P1P00917BGL521 is a Circular Connectors manufactured by NorComp Inc.. CONN PLUG MALE 9P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -20°C ~ 120°C, voltage rating 333V, color Gray.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 3A |
| Voltage Rating | 333V |
| Cable Opening | 0.157" ~ 0.197" (4.00mm ~ 5.00mm) |
| Operating Temperature | -20°C ~ 120°C |
