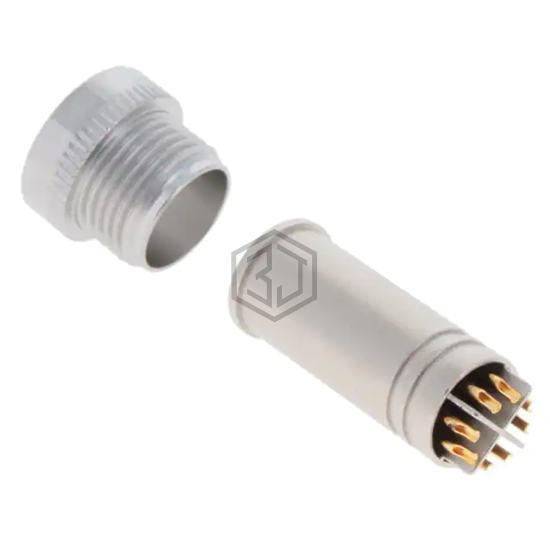

M12 8P X-CODE MALE 9.0MM BACKSHE
858-XL8-10TRLS4 is a Circular Connectors manufactured by NorComp Inc.. M12 8P X-CODE MALE 9.0MM BACKSHE. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 85°C, voltage rating 50VAC, 60VDC, color Black, Silver.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | X |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Finish | Tin |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50VAC, 60VDC |
| Cable Opening | 0.374" (9.50mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 858-XL8-10TRLS4 and get a quote within 24 hours.
