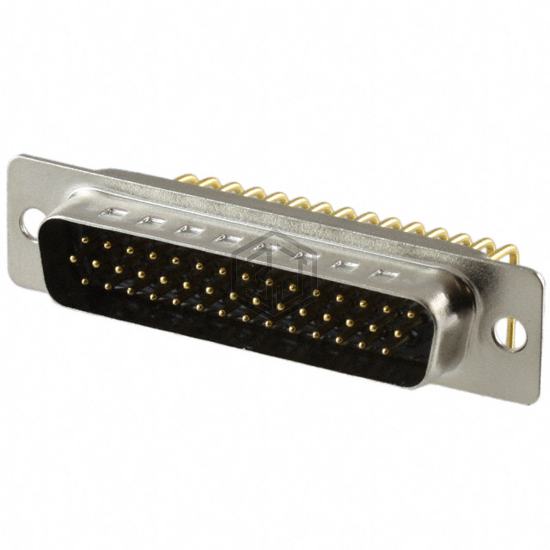

CONN D-SUB HD PLUG 44P R/A SLDR
781-M44-113R001 is a D-Sub Connectors manufactured by NorComp Inc.. CONN D-SUB HD PLUG 44P R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Grounding Indents |
Submit your RFQ for 781-M44-113R001 and get a quote within 24 hours.
