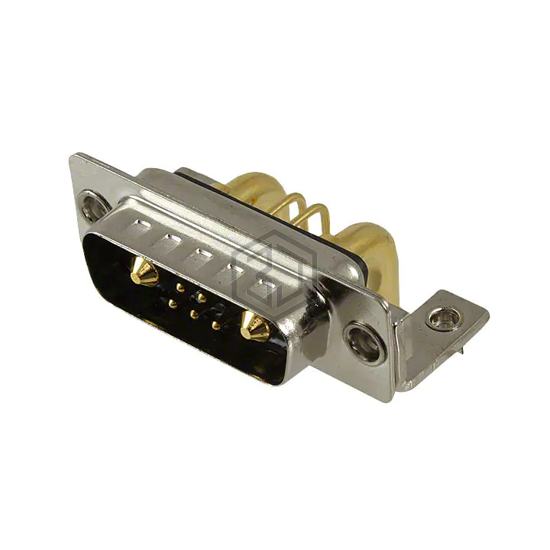

CONN D-SUB PLUG 7POS R/A SLDR
684S7W2103L461 is a D-Sub Connectors manufactured by NorComp Inc.. CONN D-SUB PLUG 7POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 5A, 40A, termination Solder, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 2,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 7 (5 + 2 Power) |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 40A |
| Backset Spacing | 0.401" (10.20mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
Submit your RFQ for 684S7W2103L461 and get a quote within 24 hours.
