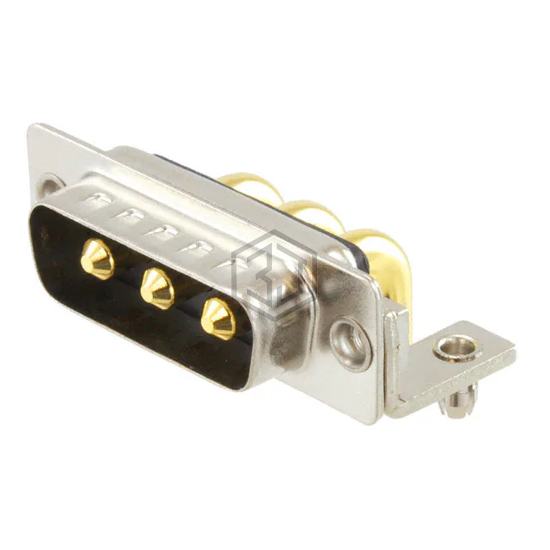

CONN D-SUB PLUG 3POS R/A SLDR
684M3W3103L461 is a D-Sub Connectors manufactured by NorComp Inc.. CONN D-SUB PLUG 3POS R/A SLDR. Key specifications: mounting type Board Edge, Through Hole, Right Angle, current rating (amps) 40A, termination Solder, number of positions 3 (Power).
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 3 (Power) |
| Number of Rows | 1 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
| Contact Type | Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 40A |
| Backset Spacing | 0.520" (13.20mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
Submit your RFQ for 684M3W3103L461 and get a quote within 24 hours.
