CONN MICRO-D FEMALE 25P RA PCB 3

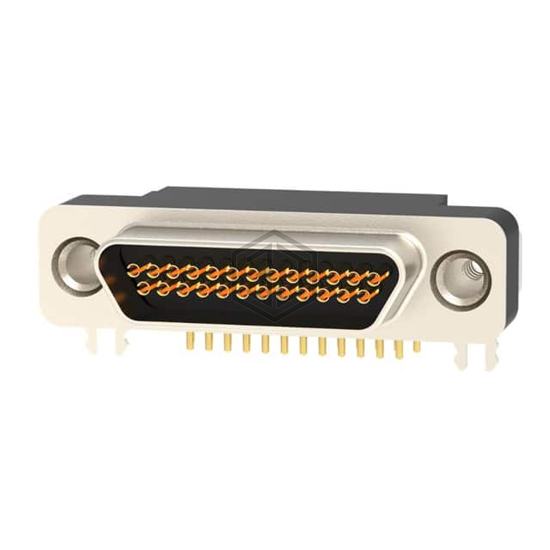

581-M25-213L462 is a D-Sub Connectors manufactured by NorComp Inc.. CONN MICRO-D FEMALE 25P RA PCB 3. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 2A, termination Solder, number of positions 25.
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row |
| Contact Type | Signal |
| Flange Feature | Board Side (2-56) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel (Front) / Brass (Rear), Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | 0.220" (5.60mm) |
| Features | Board Lock, Shielded |
Submit your RFQ for 581-M25-213L462 and get a quote within 24 hours.
