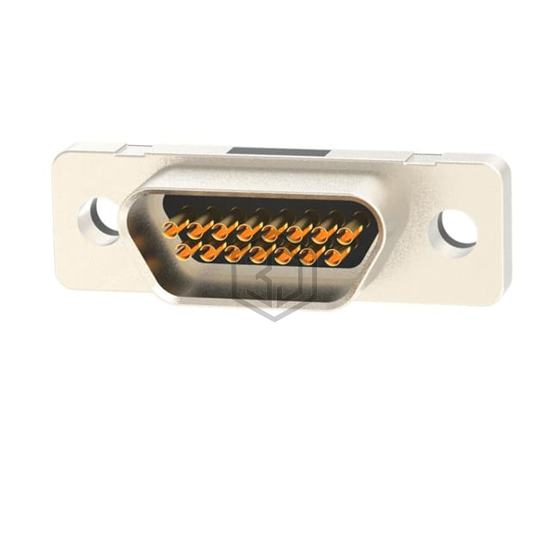

CONN MICRO-D FEMALE 15P SC 15U"
580-M15-203L001 is a D-Sub Connectors manufactured by NorComp Inc.. CONN MICRO-D FEMALE 15P SC 15U". Key specifications: mounting type Panel Mount, current rating (amps) 2A, termination Solder Cup, number of positions 15.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Zinc Alloy, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | - |
| Features | Shielded |
Submit your RFQ for 580-M15-203L001 and get a quote within 24 hours.
