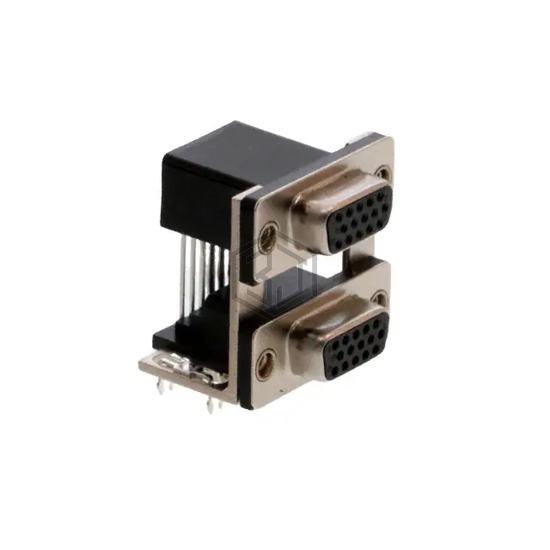

CONN D-SUB RCPT 15POS R/A SLDR
178-H15-513R497 is a D-Sub Connectors manufactured by NorComp Inc.. CONN D-SUB RCPT 15POS R/A SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 3A, termination Solder, number of positions 15, 15.
In Stock: 713
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15, 15 |
| Number of Rows | 3, 3 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets, Shielded |
Submit your RFQ for 178-H15-513R497 and get a quote within 24 hours.
