CONN D-SUB PLUG/RCPT 15P RA SLDR

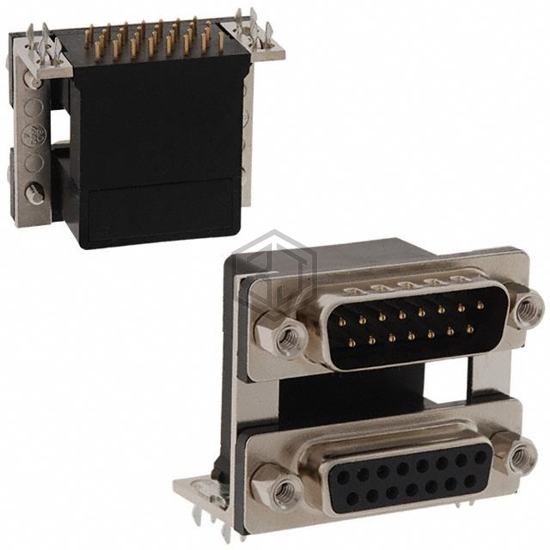

178-015-413R571 is a D-Sub Connectors manufactured by NorComp Inc.. CONN D-SUB PLUG/RCPT 15P RA SLDR. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 5A, termination Solder, number of positions 15, 15.
In Stock: 2,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins; Receptacle, Female Sockets |
| Number of Positions | 15, 15 |
| Number of Rows | 2, 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A); 2 (DA, A) |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock, Grounding Indents, Shielded |
Submit your RFQ for 178-015-413R571 and get a quote within 24 hours.
