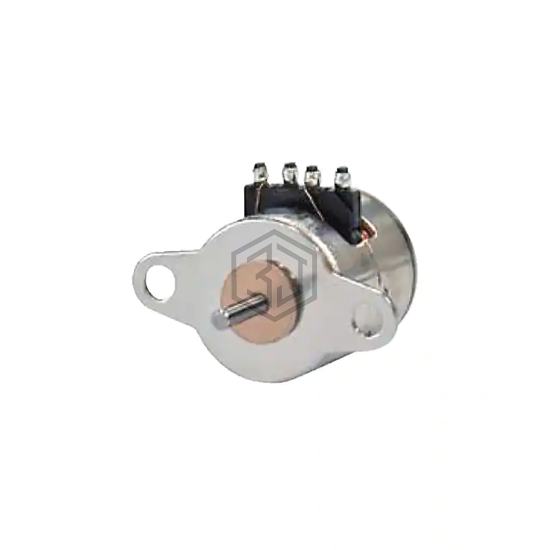

STEPPER MOTOR PM BIPOLAR 5V
SM8-F20-HHE0 is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR PM BIPOLAR 5V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 5VDC, size / dimension Round - 0.315" Dia (8.00mm), termination style Through Hole.
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 5VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 20 |
| Step Angle | 18° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | - |
| Size / Dimension | Round - 0.315" Dia (8.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.039" (1.00mm) |
| Length - Shaft and Bearing | - |
| Mounting Hole Spacing | 0.433" (11.00mm) |
| Termination Style | Through Hole |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 21 Ohms |
| Features | Round Shaft |
Submit your RFQ for SM8-F20-HHE0 and get a quote within 24 hours.
