150 X 172 X 51MM, 48VDC, IP68 PO

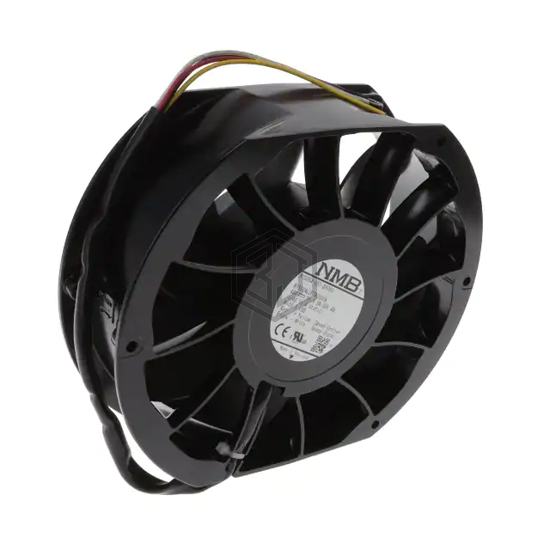

R150G4-051-D0760 is a DC Brushless Fans (BLDC) manufactured by NMB Technologies Corporation. 150 X 172 X 51MM, 48VDC, IP68 PO. Key specifications: operating temperature -22 ~ 122°F (-30 ~ 50°C), voltage - rated 48VDC, size / dimension Rectangular/Rounded - 172.7mm L x 150mm H, termination 4 Wire Leads.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Rectangular/Rounded - 172.7mm L x 150mm H |
| Width | 50.80mm |
| Air Flow | 447.0 CFM (12.52m³/min) |
| Static Pressure | 3.000 in H2O (747.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Noise | 72.0dB(A) |
| Power (Watts) | 81.6 W |
| RPM | 6000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -22 ~ 122°F (-30 ~ 50°C) |
| Approval Agency | - |
| Weight | - |
Submit your RFQ for R150G4-051-D0760 and get a quote within 24 hours.
