STEPPER MOTOR PM BIPOLAR 24V

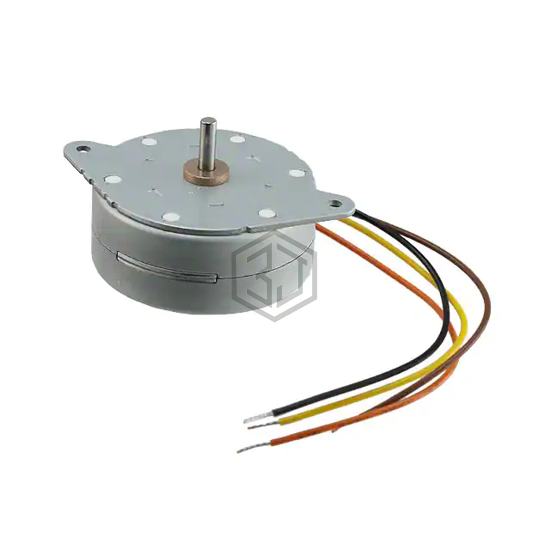

PM55L-048-HHD0 is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR PM BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 600 mA, size / dimension Round - 2.160" Dia (55.00mm), termination style Wire Leads.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 600 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 23.4 / 167 |
| Size / Dimension | Round - 2.160" Dia (55.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 2.560" (65.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 5.5 Ohms |
| Features | Round Shaft |
Submit your RFQ for PM55L-048-HHD0 and get a quote within 24 hours.
