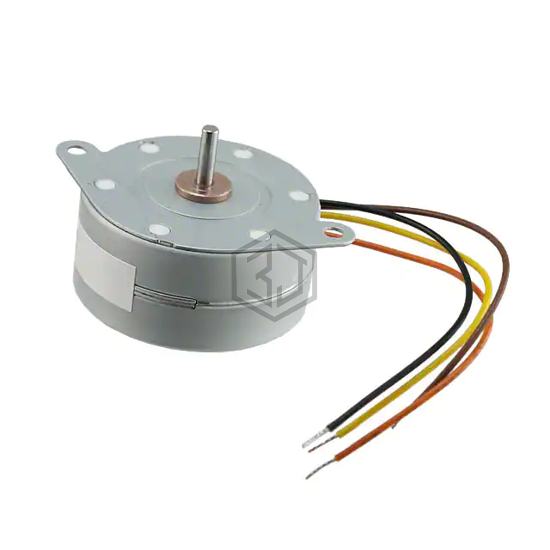

STEPPER MOTOR PM BIPOLAR 24V
PM42L-048-HHC9 is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR PM BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 600 mA, size / dimension Round - 1.650" Dia (42.00mm), termination style Wire Leads.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 600 mA |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 17.6 / 124 |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.472" (12.00mm) |
| Mounting Hole Spacing | 1.950" (49.48mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 7 Ohms |
| Features | Round Shaft |
Submit your RFQ for PM42L-048-HHC9 and get a quote within 24 hours.
