STEPPER MOTOR PM BIPOLAR 24V

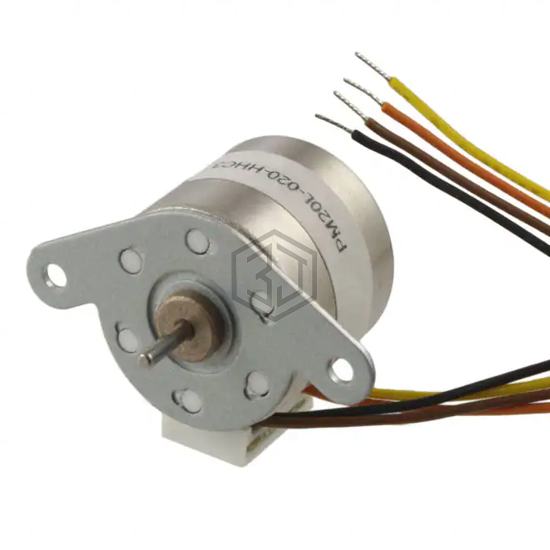

PM20L-020-HHC3 is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR PM BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 400 mA, size / dimension Round - 0.787" Dia (20.00mm), termination style Wire Leads.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 400 mA |
| Steps per Revolution | 20 |
| Step Angle | 18° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 2.1 / 15 |
| Size / Dimension | Round - 0.787" Dia (20.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.059" (1.50mm) |
| Length - Shaft and Bearing | 0.315" (8.00mm) |
| Mounting Hole Spacing | 1.100" (28.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 13 Ohms |
| Features | Round Shaft |
Submit your RFQ for PM20L-020-HHC3 and get a quote within 24 hours.
