STEP MOTOR PM GEARED BIPOLAR 24V

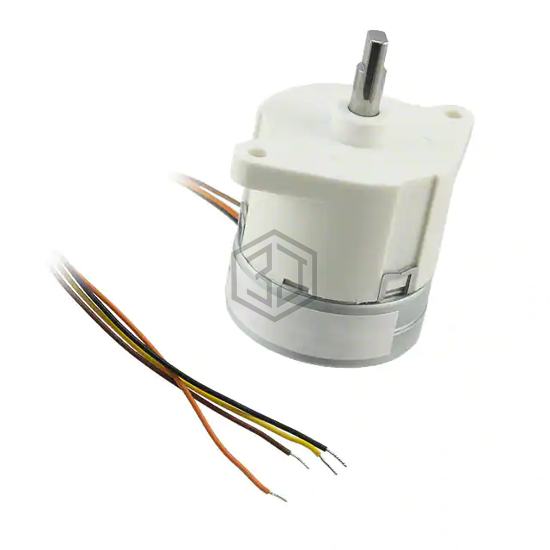

PG35S-D48-HHC2 is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR PM GEARED BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 250 mA, size / dimension Round - 1.378" Dia (35.00mm), termination style Wire Leads.
In Stock: 919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 1698 |
| Step Angle | 0.212° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 |
| Size / Dimension | Round - 1.378" Dia (35.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.709" (18.00mm) |
| Mounting Hole Spacing | 1.650" (42.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 28 Ohms |
| Features | Double Flatted Shaft |
Submit your RFQ for PG35S-D48-HHC2 and get a quote within 24 hours.
