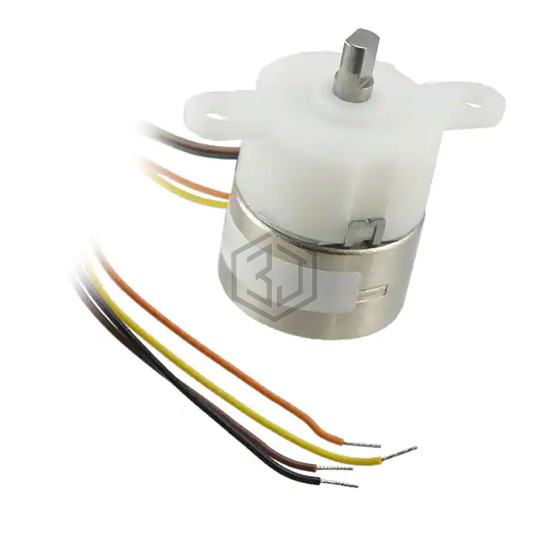

STEP MOTOR PM GEARED BIPOLAR 24V
PG25L-D24-HHC1 is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR PM GEARED BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 250 mA, size / dimension Round - 0.984" Dia (25.00mm), termination style Wire Leads.
In Stock: 1,176
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 250 mA |
| Steps per Revolution | 727 |
| Step Angle | 0.495° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 63.7 / 450 |
| Size / Dimension | Round - 0.984" Dia (25.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mounting Hole Spacing | 1.378" (35.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 28 Ohms |
| Features | Double Flatted Shaft |
