STEP MOTOR PM GEARED BIPOLAR 10V

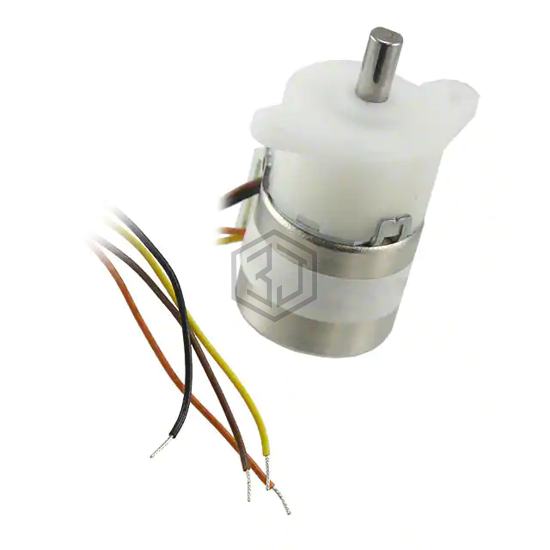

PG20L-D20-HHC0 is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR PM GEARED BIPOLAR 10V. Key specifications: voltage - rated 10VDC, current rating (amps) 350 mA, size / dimension Round - 0.787" Dia (20.00mm), termination style Wire Leads.
In Stock: 298
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 10VDC |
| Current Rating (Amps) | 350 mA |
| Steps per Revolution | 1818 |
| Step Angle | 0.198° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | - |
| Size / Dimension | Round - 0.787" Dia (20.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mounting Hole Spacing | 0.984" (25.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 10 Ohms |
| Features | Flatted Shaft |
Submit your RFQ for PG20L-D20-HHC0 and get a quote within 24 hours.
