STEP MOTOR PM GEARED BIPOLAR 15V

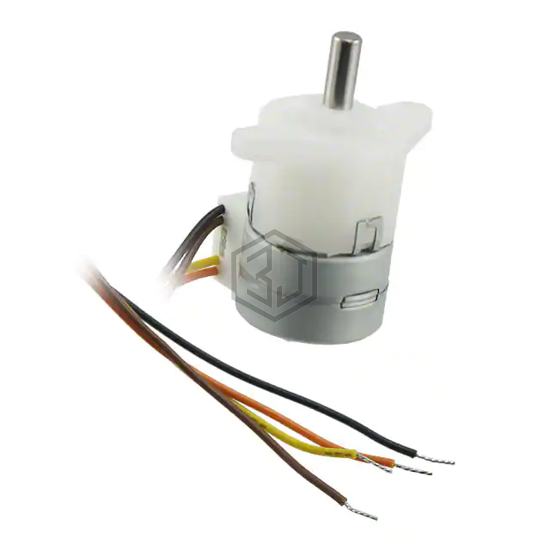

PG15S-D20-HHB9 is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR PM GEARED BIPOLAR 15V. Key specifications: voltage - rated 15VDC, current rating (amps) 100 mA, size / dimension Round - 0.591" Dia (15.00mm), termination style Wire Leads.
In Stock: 184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Permanent Magnet Gear Motor |
| Coil Type | Bipolar |
| Voltage - Rated | 15VDC |
| Current Rating (Amps) | 100 mA |
| Steps per Revolution | 2048 |
| Step Angle | 0.176° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 21.2 / 150 |
| Size / Dimension | Round - 0.591" Dia (15.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.118" (3.00mm) |
| Length - Shaft and Bearing | 0.354" (9.00mm) |
| Mounting Hole Spacing | 0.787" (20.00mm) |
| Termination Style | Wire Leads |
| Operating Temperature | - |
| Coil Resistance | 10 Ohms |
| Features | Round Shaft |
Submit your RFQ for PG15S-D20-HHB9 and get a quote within 24 hours.
