STEP MOTOR HYBRID UNIPOLAR 24V

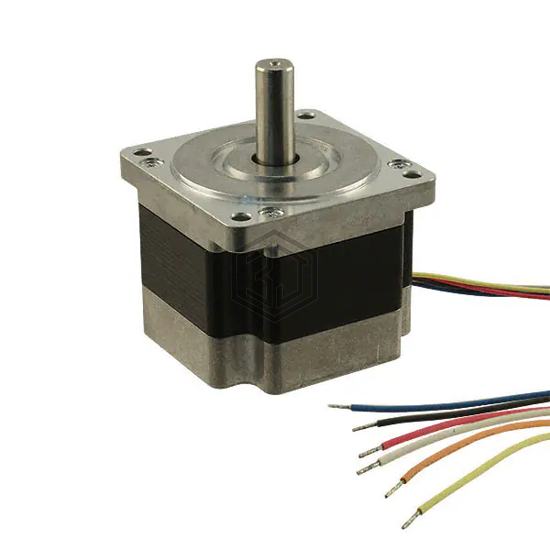

34KM-K006-00W is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR HYBRID UNIPOLAR 24V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 4.8 A, size / dimension Square - 3.347" x 3.347" (85.00mm x 85.00mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 4.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 354.07 / 2500 |
| Size / Dimension | Square - 3.347" x 3.347" (85.00mm x 85.00mm) |
| NEMA Frame Size | 34 |
| Diameter - Shaft | 0.551" (14.00mm) |
| Length - Shaft and Bearing | 1.457" (37.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.45 Ohms |
| Features | Double Flatted Shaft |
