STEP MOTOR HYBRID UNIPOLAR 24V

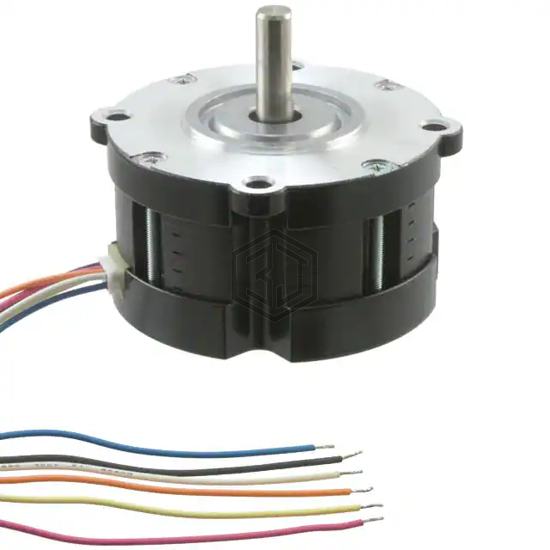

29SM-K550-00V is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR HYBRID UNIPOLAR 24V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 1.5 A, size / dimension Round - 2.795" Dia (71.00mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 1.5 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 53.82 / 380 |
| Size / Dimension | Round - 2.795" Dia (71.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 2.1 Ohms |
| Features | Round Shaft |
Submit your RFQ for 29SM-K550-00V and get a quote within 24 hours.
