STEP MOTOR HYBRID DUAL SHAFT 24V

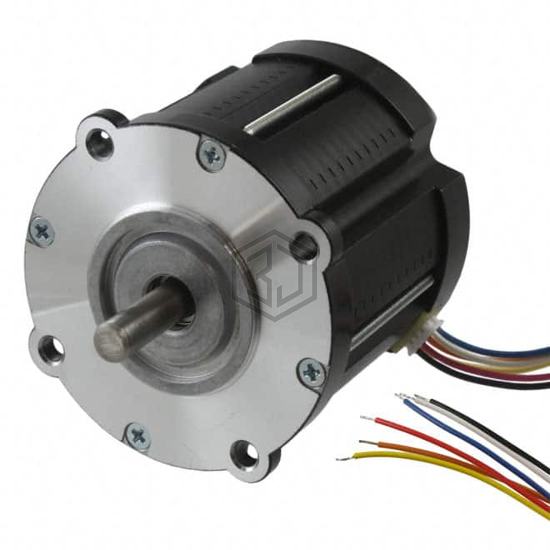

29SM-K138-99V is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR HYBRID DUAL SHAFT 24V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 2.6 A, size / dimension Round - 2.795" Dia (71.00mm).
In Stock: 5,253
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid, Dual Shaft |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.6 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 169.96 / 1200 |
| Size / Dimension | Round - 2.795" Dia (71.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 1.25 Ohms |
| Features | Round Shaft |
Submit your RFQ for 29SM-K138-99V and get a quote within 24 hours.
