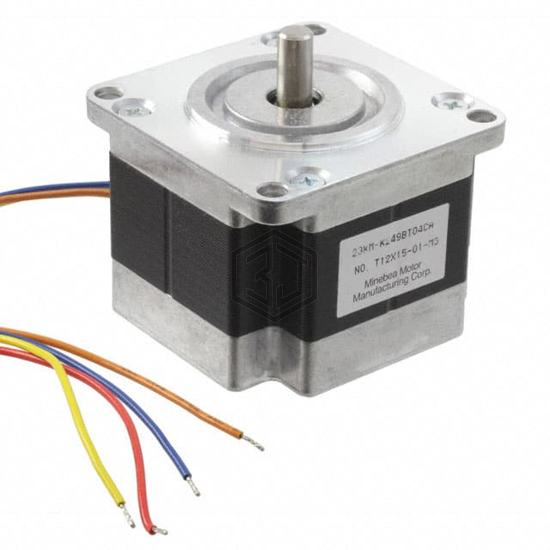

23KM-K249BT04CA - NMB Technologies Corporation - Stepper Motors

23KM-K249BT04CA

NMB Technologies Corporation

STEPPER MOTOR HYBRID BIPOLAR 24V

23KM-K249BT04CA is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR HYBRID BIPOLAR 24V. Key specifications: voltage - rated 24VDC, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm), termination style Wire Leads, accuracy ±5%.

In Stock: 1,681

Product Attributes

AttributeValue
Product StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)-
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)76.5 / 540
Size / DimensionSquare - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size23
Diameter - Shaft0.315" (8.00mm)
Length - Shaft and Bearing0.551" (14.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads
Operating Temperature-
Coil Resistance2.4 Ohms
FeaturesFlatted Shaft

Frequently Asked Questions

23KM-K249BT04CA is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR HYBRID BIPOLAR 24V

The supply voltage of 23KM-K249BT04CA is 24VDC.

The size of 23KM-K249BT04CA is Square - 2.220" x 2.220" (56.40mm x 56.40mm).

The termination type of 23KM-K249BT04CA is Wire Leads.
