STEP MOTOR HYBRID UNIPOLAR 24V

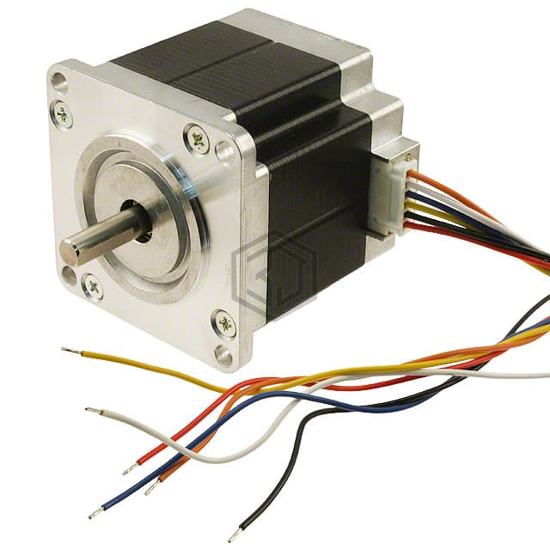

23KM-K044-00V is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR HYBRID UNIPOLAR 24V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 3 A, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm).
In Stock: 9,692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 3 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 127.47 / 900 |
| Size / Dimension | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.85 Ohms |
| Features | Flatted Shaft |
