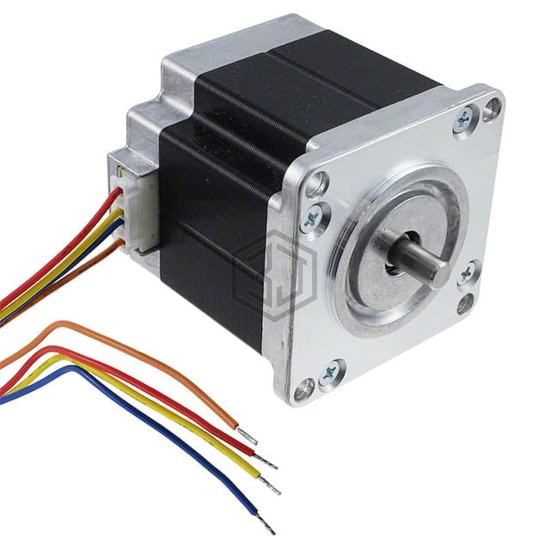

23KM-K041BT03CA - NMB Technologies Corporation - Stepper Motors

23KM-K041BT03CA

NMB Technologies Corporation

STEPPER MOTOR HYBRID BIPOLAR 36V

23KM-K041BT03CA is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR HYBRID BIPOLAR 36V. Key specifications: voltage - rated 36VDC, size / dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm), termination style Wire Leads, accuracy ±5%.

In Stock: 9,117

Product Attributes

AttributeValue
Product StatusObsolete
TypeHybrid
Coil TypeBipolar
Voltage - Rated36VDC
Current Rating (Amps)-
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)169.53 / 1197
Size / DimensionSquare - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size23
Diameter - Shaft0.236" (6.00mm)
Length - Shaft and Bearing0.453" (11.50mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads
Operating Temperature-
Coil Resistance1 Ohms
FeaturesFlatted Shaft

Frequently Asked Questions

23KM-K041BT03CA is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR HYBRID BIPOLAR 36V

The supply voltage of 23KM-K041BT03CA is 36VDC.

The size of 23KM-K041BT03CA is Square - 2.220" x 2.220" (56.40mm x 56.40mm).

The termination type of 23KM-K041BT03CA is Wire Leads.

Yes, 23KM-K041BT03CA is listed as Obsolete. Consider requesting a quote for alternative parts.
