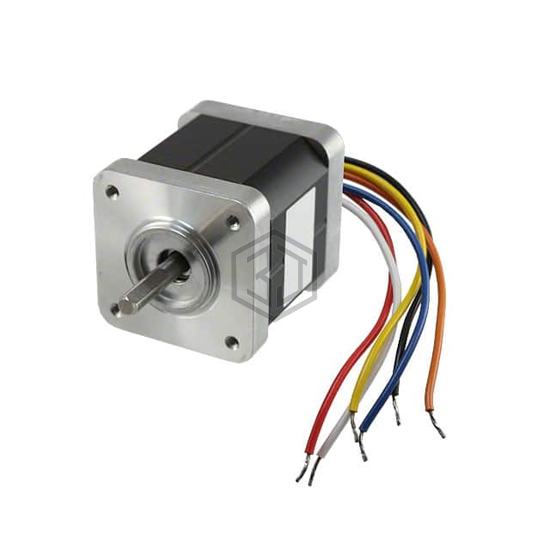

STEP MOTOR HYBRID UNIPOLAR 24V
17PY-Z444-00VS is a Stepper Motors manufactured by NMB Technologies Corporation. STEP MOTOR HYBRID UNIPOLAR 24V. Key specifications: operating temperature -10°C ~ 50°C, voltage - rated 24VDC, current rating (amps) 1.2 A, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Unipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 1.2 A |
| Steps per Revolution | 400 |
| Step Angle | 0.9° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 46.74 / 330 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.787" (20.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 3.3 Ohms |
| Features | Flatted Shaft |
Submit your RFQ for 17PY-Z444-00VS and get a quote within 24 hours.
