STEPPER MOTOR HYBRID BIPOLAR 24V

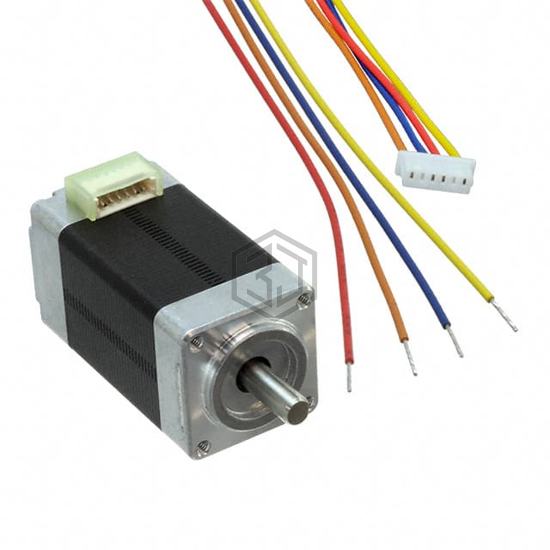

08PM-K139BSTDCN is a Stepper Motors manufactured by NMB Technologies Corporation. STEPPER MOTOR HYBRID BIPOLAR 24V. Key specifications: voltage - rated 24VDC, current rating (amps) 600 mA, size / dimension Square - 0.787" x 0.787" (20.00mm x 20.00mm), termination style Wire Leads with Connector.
In Stock: 4,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 600 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 5.1 / 36 |
| Size / Dimension | Square - 0.787" x 0.787" (20.00mm x 20.00mm) |
| NEMA Frame Size | 8 |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.394" (10.00mm) |
| Mounting Hole Spacing | 0.630" (16.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | - |
| Coil Resistance | 6.5 Ohms |
| Features | Flatted Shaft |
Submit your RFQ for 08PM-K139BSTDCN and get a quote within 24 hours.
