40MMX20MM, IP68/IP69K RATED, 24V

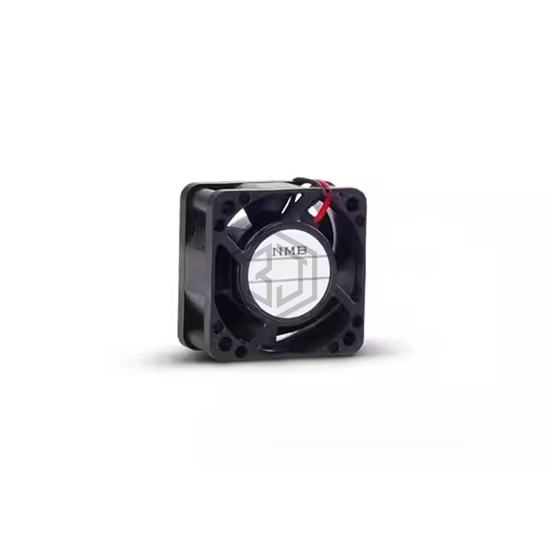

04020VE-24Q-CT-00 is a DC Brushless Fans (BLDC) manufactured by NMB Technologies Corporation. 40MMX20MM, IP68/IP69K RATED, 24V. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 40mm L x 40mm H, termination 3 Wire Leads.
In Stock: 143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 20.00mm |
| Air Flow | 12.4 CFM (0.347m³/min) |
| Static Pressure | 0.570 in H2O (142.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Noise | 42.0dB(A) |
| Power (Watts) | 2.64 W |
| RPM | 11000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cULus, VDE |
| Weight | - |
