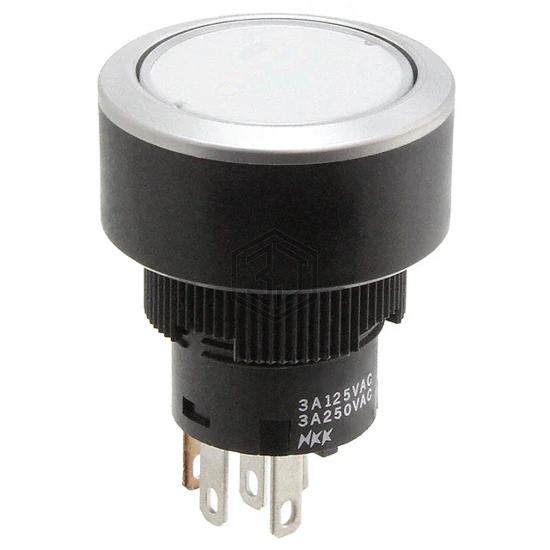

SWITCH PUSHBUTTON SPDT 3A 125V
YB215CWCPW01-6B-JS is a Pushbutton Switches manufactured by NKK Switches. SWITCH PUSHBUTTON SPDT 3A 125V. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 50°C, voltage rating - dc 30 V, current rating (amps) 3A (AC/DC).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 3.3 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | Tactile Feedback |
| Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Operating Temperature | -25°C ~ 50°C |
Submit your RFQ for YB215CWCPW01-6B-JS and get a quote within 24 hours.
