SWITCH PUSHBUTTON SPDT 0.4VA 28V

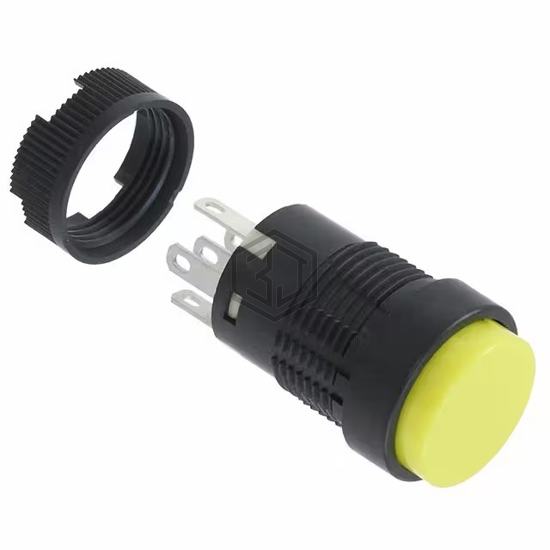

YB15CKG01-12-EB is a Pushbutton Switches manufactured by NKK Switches. SWITCH PUSHBUTTON SPDT 0.4VA 28V. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 50°C, voltage rating - dc 28 V, current rating (amps) 0.4VA (AC/DC).
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Yellow (White Filter/Diffuser) |
| Illumination Type, Color | Incandescent, Yellow |
| Illumination Voltage (Nominal) | 12 VAC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - |
| Features | Stainless Steel |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Operating Temperature | -25°C ~ 50°C |
