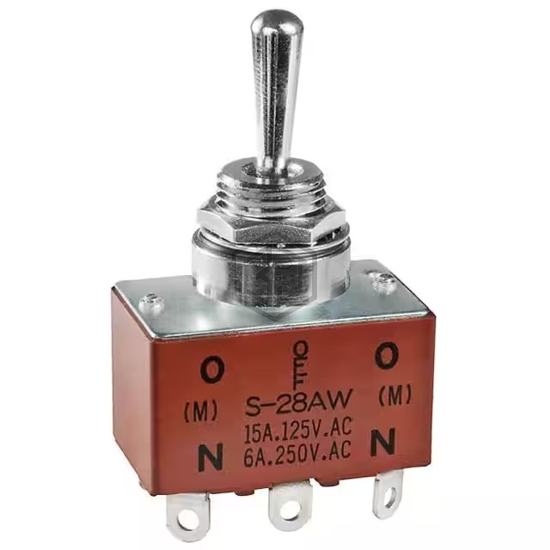

S28AW W/ 12" WIRES, CN2423
S28AW-WL is a Toggle Switches manufactured by NKK Switches. S28AW W/ 12" WIRES, CN2423. Key specifications: mounting type Panel Mount, operating temperature -10°C ~ 70°C, voltage rating - dc 30 V, current rating (amps) 15A (AC), 20A (DC).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | DPDT |
| Switch Function | Mom-Off-Mom |
| Current Rating (Amps) | 15A (AC), 20A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Standard Round |
| Actuator Length | 17.50mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Bushing Thread | M12 x 1 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -10°C ~ 70°C |
Submit your RFQ for S28AW-WL and get a quote within 24 hours.
