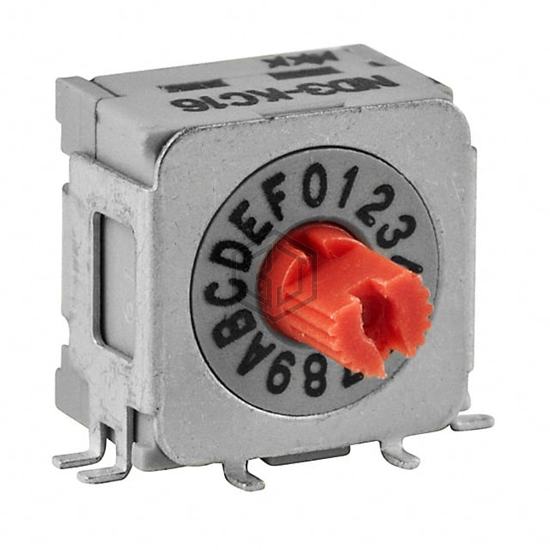

SW ROTARY DIP HEX COMP 100MA 5V
ND3KC16H is a DIP Switches manufactured by NKK Switches. SW ROTARY DIP HEX COMP 100MA 5V. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 5VDC, contact material Beryllium Copper.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | Hexadecimal Complement |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Voltage Rating | 5VDC |
| Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Height Above Board | 0.316" (8.03mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.050" (1.27mm), Half |
| Washable | Yes |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -25°C ~ 85°C |
