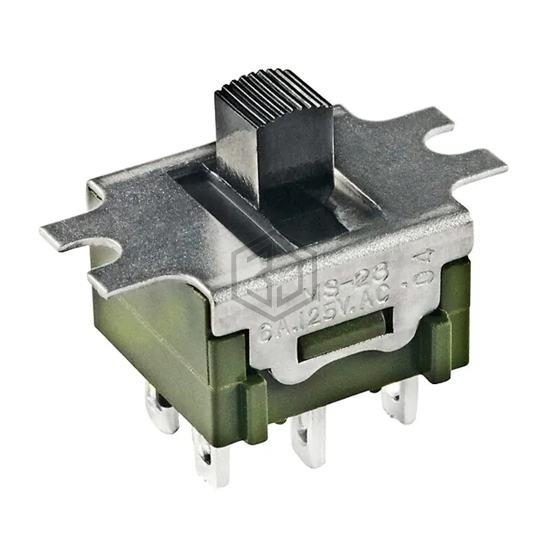

MS23AFW01 - NKK Switches - Slide Switches

MS23AFW01

NKK Switches

SWITCH SLIDE DPDT 6A 125V

MS23AFW01 is a Slide Switches manufactured by NKK Switches. SWITCH SLIDE DPDT 6A 125V. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 85°C, voltage rating - ac 125 V, contact material Silver Alloy.

In Stock: 4,398

Product Attributes

AttributeValue
Product StatusActive
CircuitDPDT
Contact TimingNon-Shorting (BBM)
Switch FunctionOn-Off-On
Current Rating (Amps)6A (AC)
Voltage Rating - AC125 V
Voltage Rating - DC-
Actuator TypeStandard
Actuator Length5.10mm
Contact MaterialSilver Alloy
Contact FinishSilver
Mounting TypePanel Mount
Termination StyleSolder Lug
FeaturesEpoxy Sealed Terminals
Operating Temperature-30°C ~ 85°C

Frequently Asked Questions

MS23AFW01 is a Slide Switches manufactured by NKK Switches. SWITCH SLIDE DPDT 6A 125V

The mounting type of MS23AFW01 is Panel Mount.

The operating temperature range of MS23AFW01 is -30°C ~ 85°C.

The supply voltage of MS23AFW01 is 125 V.

The circuit configuration of MS23AFW01 is DPDT.
