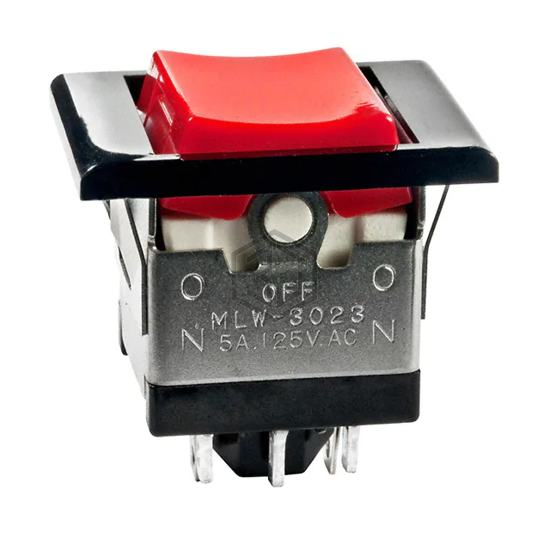

SWITCH ROCKER DPDT 5A 125V
MLW3023-12-RC-1A is a Rocker Switches manufactured by NKK Switches. SWITCH ROCKER DPDT 5A 125V. Key specifications: mounting type Panel Mount, Snap-In, operating temperature -10°C ~ 50°C, voltage rating - dc 30 V, current rating (amps) 5A (AC), 3A (DC).
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | DPDT |
| Switch Function | On-Off-On |
| Current Rating (Amps) | 5A (AC), 3A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Concave (Curved) - Illuminated |
| Color - Actuator/Cap | Red |
| Actuator Marking | No Marking |
| Illumination Type, Color | Incandescent, Red |
| Illumination Voltage (Nominal) | 12 VAC |
| Termination Style | Solder Lug |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Rectangular - 18.70mm x 16.70mm |
| Operating Temperature | -10°C ~ 50°C |
Submit your RFQ for MLW3023-12-RC-1A and get a quote within 24 hours.
