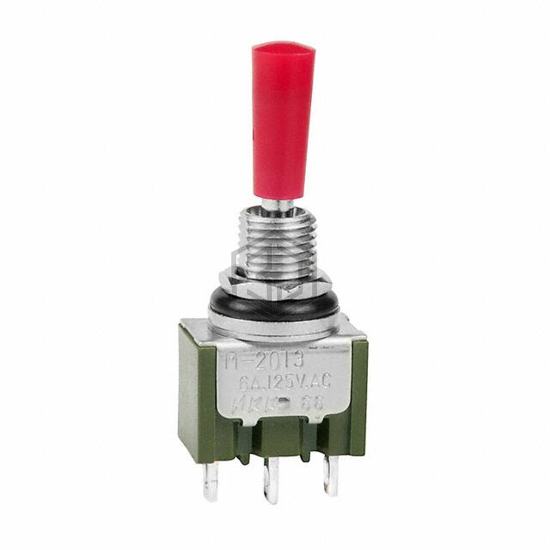

SWITCH TOGGLE SPDT 6A 125V
M2013SD3W01-CC is a Toggle Switches manufactured by NKK Switches. SWITCH TOGGLE SPDT 6A 125V. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 85°C, voltage rating - dc 30 V, current rating (amps) 6A (AC), 3A (DC).
In Stock: 2,073
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Circuit | SPDT |
| Switch Function | On-Off-On |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Standard Round with Cap |
| Actuator Length | 13.10mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Bushing Thread | 1/4-40 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Red Cap |
| Operating Temperature | -30°C ~ 85°C |
