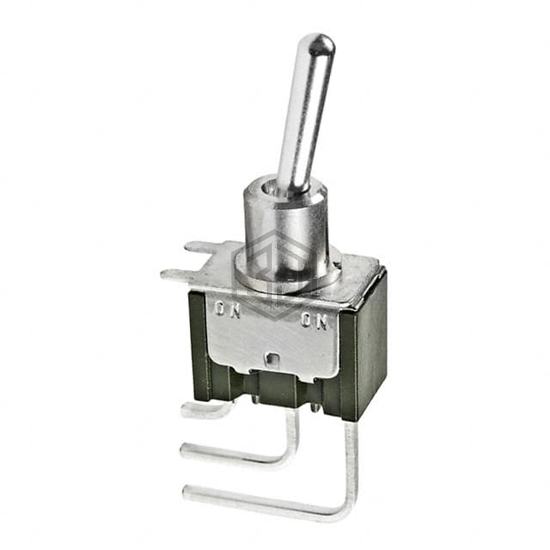

SWITCH TOGGLE SPDT 6A 125V
M2012SA2W40 is a Toggle Switches manufactured by NKK Switches. SWITCH TOGGLE SPDT 6A 125V. Key specifications: mounting type Through Hole, Right Angle, Vertical, operating temperature -30°C ~ 85°C, voltage rating - dc 30 V, current rating (amps) 6A (AC), 4A (DC).
In Stock: 5,209
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Circuit | SPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 6A (AC), 4A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Standard Round |
| Actuator Length | 12.27mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | PC Pin |
| Panel Cutout Dimensions | - |
| Bushing Thread | Unthreaded |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -30°C ~ 85°C |
Submit your RFQ for M2012SA2W40 and get a quote within 24 hours.
