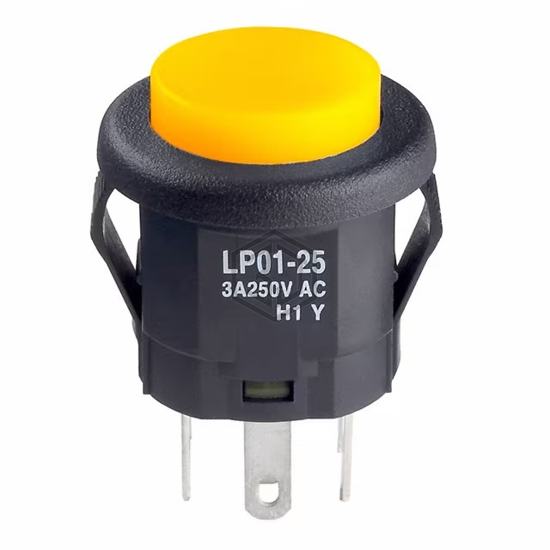

SWITCH PUSHBUTTON DPDT 3A 125V
LP0125CMKW015DB is a Pushbutton Switches manufactured by NKK Switches. SWITCH PUSHBUTTON DPDT 3A 125V. Key specifications: mounting type Panel Mount, Snap-In, operating temperature -10°C ~ 50°C, voltage rating - dc 30 V, current rating (amps) 3A (AC/DC).
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Type | Standard, Illuminated |
| Circuit | DPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | White |
| Illumination Type, Color | LED, Amber |
| Illumination Voltage (Nominal) | 2 VDC |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Circular - 17.30mm Dia |
| Operating Temperature | -10°C ~ 50°C |
Submit your RFQ for LP0125CMKW015DB and get a quote within 24 hours.
