SWITCH TACTILE SPST-NO 0.05A 24V

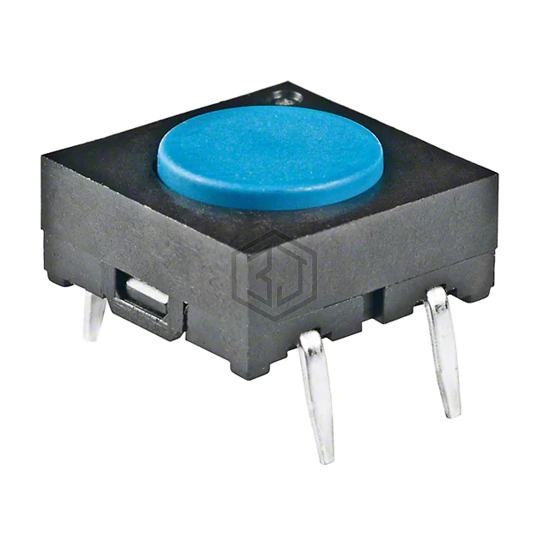

JB15FP is a Tactile Switches manufactured by NKK Switches. SWITCH TACTILE SPST-NO 0.05A 24V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C, termination style PC Pin, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 18,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Round Button |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 4.90mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 10.00mm x 10.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 176gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Process Sealed |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for JB15FP and get a quote within 24 hours.
