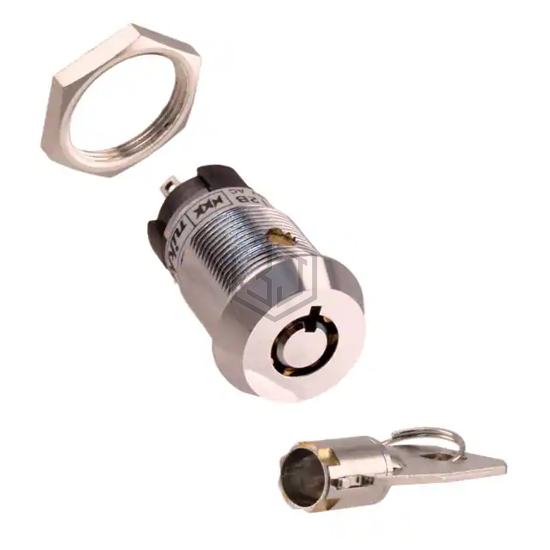

CKL12BTW01-032 - NKK Switches - Keylock Switches

CKL12BTW01-032

NKK Switches

SWITCH KEYLOCK 2POS SPDT 3A 250V

CKL12BTW01-032 is a Keylock Switches manufactured by NKK Switches. SWITCH KEYLOCK 2POS SPDT 3A 250V. Key specifications: mounting type Panel Mount, operating temperature -25°C ~ 70°C, voltage rating - ac 250 V, contact material Silver (Ag).

In Stock: 3,968

Product Attributes

AttributeValue
Product StatusActive
CircuitSPDT
Number of Positions2
Switch FunctionOn-On
Contact TimingNon-Shorting (BBM)
Current Rating (Amps)3A (AC)
Voltage Rating - AC250 V
Voltage Rating - DC-
Actuator TypeTubular Key
Key Removable Positions1 only
Angle of Throw90°
Contact MaterialSilver (Ag)
Contact FinishSilver
Mounting TypePanel Mount
Termination StyleSolder Lug
Panel Cutout DimensionsCircular - 19.00mm Dia
FeaturesEpoxy Sealed Terminals
Operating Temperature-25°C ~ 70°C

Frequently Asked Questions

CKL12BTW01-032 is a Keylock Switches manufactured by NKK Switches. SWITCH KEYLOCK 2POS SPDT 3A 250V

The mounting type of CKL12BTW01-032 is Panel Mount.

The operating temperature range of CKL12BTW01-032 is -25°C ~ 70°C.

The supply voltage of CKL12BTW01-032 is 250 V.

The circuit configuration of CKL12BTW01-032 is SPDT.
