SWITCH TOGGLE SPDT 0.4VA 28V

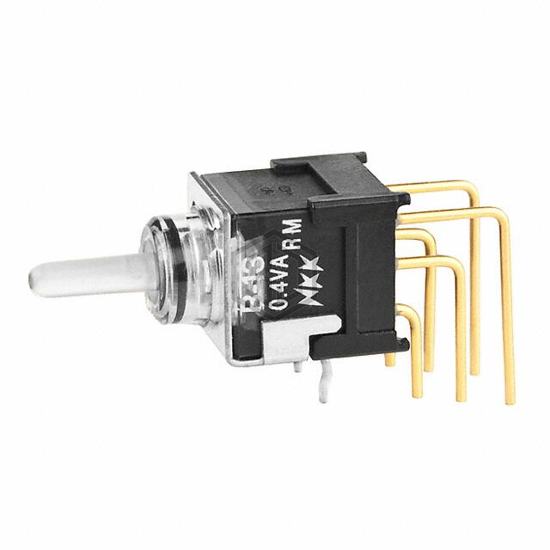

B13JJVCF is a Toggle Switches manufactured by NKK Switches. SWITCH TOGGLE SPDT 0.4VA 28V. Key specifications: mounting type Through Hole, Right Angle, Vertical, operating temperature -25°C ~ 55°C, voltage rating - dc 28 V, current rating (amps) 0.4VA (AC/DC).
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole, Right Angle, Vertical |
| Circuit | SPDT |
| Switch Function | On-Off-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Standard Round |
| Actuator Length | 6.30mm |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Red/Green |
| Illumination Voltage (Nominal) | 1.95, 3.3 VDC |
| Termination Style | PC Pin |
| Panel Cutout Dimensions | - |
| Bushing Thread | Unthreaded |
| Ingress Protection | - |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -25°C ~ 55°C |
