PWM STEP-UP/INVERTING DCDC CONVE

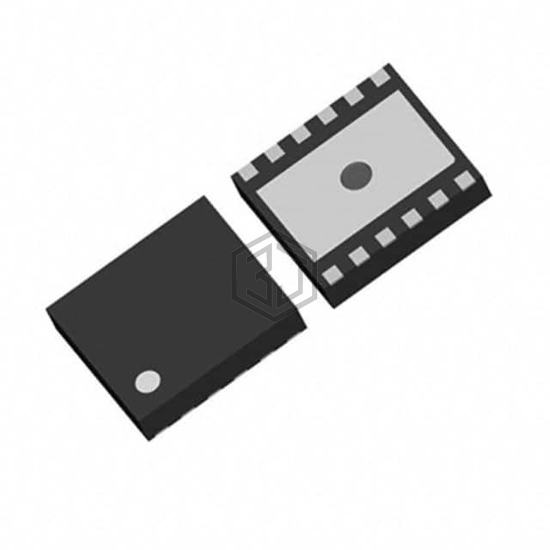

R1286K103M-TR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-UP/INVERTING DCDC CONVE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFDFN Exposed Pad, current - output 300mA.
In Stock: 6,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up/Inverted |
| Output Configuration | Positive and Negative |
| Topology | Buck, Boost |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -6V |
| Voltage - Output (Max) | 5.8V |
| Current - Output | 300mA |
| Frequency - Switching | 1.75MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PLP)2730-12 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R1286K003G-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 98% | View |
| R1286K008E-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 97% | View |
| R1286K010E-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 96% | View |
| R1286K005A-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 96% | View |
| R1286K006A-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 94% | View |
| R1286K111M-TR | Nisshinbo Micro Devices Inc. | PWM STEP-UP/INVERTING DCDC CONVE | 94% | View |
Submit your RFQ for R1286K103M-TR and get a quote within 24 hours.
