3A 30V INPUT PWM STEP-DOWN DCDC

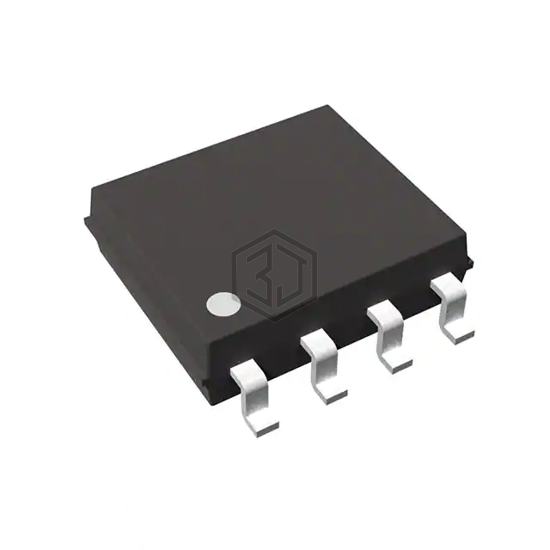

R1242S001F-E2-FE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. 3A 30V INPUT PWM STEP-DOWN DCDC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.173", 4.40mm Width) Exposed Pad, current - output 3A.
In Stock: 9,926
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5V |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 15V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 8-HSOP-E |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MPQ2325GJ-P | Monolithic Power Systems Inc. | IC REG BUCK ADJUSTABLE 3A HI EFF | 83% | View |
| ISL85003FRZ | Renesas Electronics America Inc | IC REG BUCK ADJUSTABLE 3A 12DFN | 82% | View |
| MP1496SGJ-Z | Monolithic Power Systems Inc. | IC REG BUCK ADJ 2A TSOT23-8 | 79% | View |
| MP2225GJ-P | Monolithic Power Systems Inc. | IC REG BUCK ADJ 5A TSOT23-8 | 72% | View |
| RT6214AHRGJ6F | Richtek USA Inc. | IC REG BUCK ADJ 3A TSOT23-6(FC) | 71% | View |
| LT1374IFE#PBF | Analog Devices Inc. | IC REG BUCK SEPIC ADJ 16TSSOP | 68% | View |
Submit your RFQ for R1242S001F-E2-FE and get a quote within 24 hours.
