PWM STEP-DOWN DCDC CONVERTER

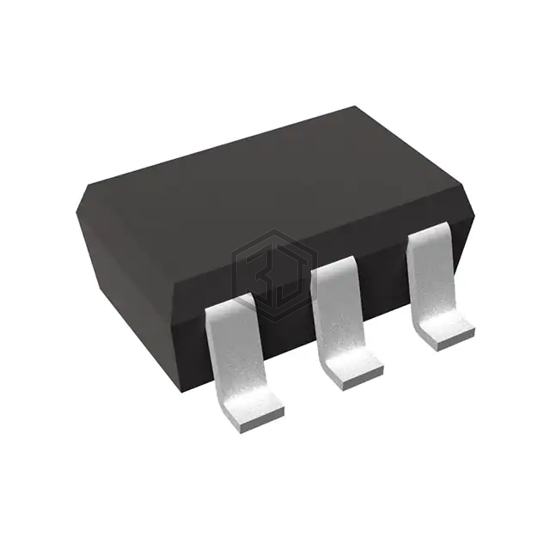

R1240N001B-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. PWM STEP-DOWN DCDC CONVERTER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 30V, package / case SOT-23-6.
In Stock: 9,039
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Frequency - Switching | 1.25MHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6W |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX20412ATJF/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK DUAL | 74% | View |
| MAX20412ATJG/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK DUAL | 74% | View |
| MAX20412ATJE/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK DUAL | 74% | View |
| MAX20412ATJF/V+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK DUAL | 74% | View |
| MAX20412ATJD/V+T | Analog Devices Inc./Maxim Integrated | DUAL CHANNEL BUCK CONTROLLER FOR | 56% | View |
| MAX20412ATJD/V+ | Analog Devices Inc./Maxim Integrated | DUAL CHANNEL BUCK CONTROLLER FOR | 56% | View |
Submit your RFQ for R1240N001B-TR-FE and get a quote within 24 hours.
