18.5V INPUT PWM/VFM STEP-DOWN DC

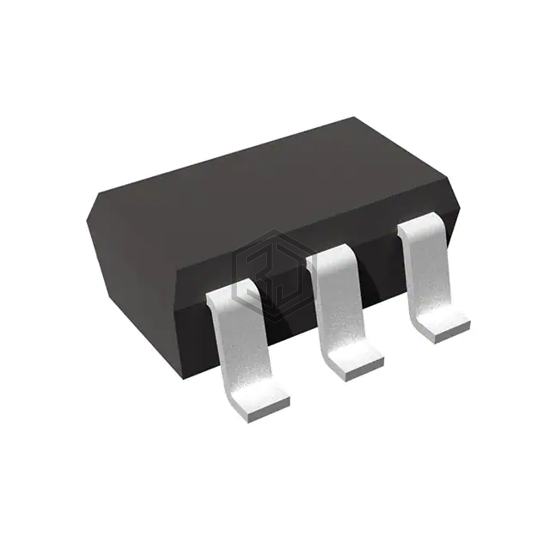

R1224N552M-TR-FE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. 18.5V INPUT PWM/VFM STEP-DOWN DC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 2.3V ~ 18.5V, package / case SC-74A, SOT-753.
In Stock: 3,514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 18.5V |
| Frequency - Switching | 180kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R1224N502L-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N302M-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N312M-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| S-8520B15MC-ARAT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| S-8520B50MC-ASJT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
| S-8521A36MC-AXVT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 99% | View |
Submit your RFQ for R1224N552M-TR-FE and get a quote within 24 hours.
