RAIL-TO-RAIL INPUT OPEN-DRAIN OU

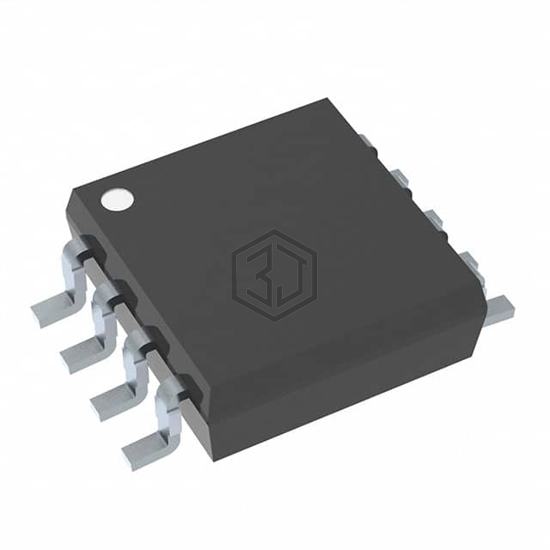

NJU77242RB1-TE1 is a Linear - Comparators manufactured by Nisshinbo Micro Devices Inc.. RAIL-TO-RAIL INPUT OPEN-DRAIN OU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-VSSOP, 8-MSOP (0.110", 2.80mm Width), output type Open Drain.
In Stock: 9,907
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | CMOS |
| Number of Elements | 2 |
| Output Type | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 5.5V, ±0.9V ~ 2.75V |
| Voltage - Input Offset (Max) | 7mV @ 3V |
| Current - Input Bias (Max) | 1pA @ 3V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 14µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 840ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TVSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NJU77232RB1-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT PUSH-PULL OUT | 99% | View |
| NJU77241F-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT OPEN-DRAIN OU | 95% | View |
| NJU77240F-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT OPEN-DRAIN OU | 95% | View |
| NJU77240F3-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT OPEN-DRAIN OU | 95% | View |
| NJU77230F-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT PUSH-PULL OUT | 94% | View |
| NJU77230F3-TE1 | Nisshinbo Micro Devices Inc. | RAIL-TO-RAIL INPUT PUSH-PULL OUT | 94% | View |
Submit your RFQ for NJU77242RB1-TE1 and get a quote within 24 hours.
