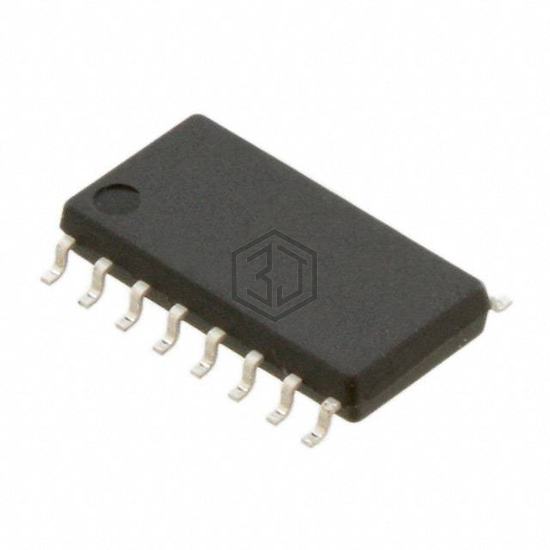

IC SWITCH QUAD SPST 16DMP
NJU7301M is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nisshinbo Micro Devices Inc.. IC SWITCH QUAD SPST 16DMP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 16-SOIC (0.209", 5.30mm Width), number of circuits 4.
In Stock: 7,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-DMP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG212AKPZ | Analog Devices Inc. | IC SWITCH QUAD SPST 20PLCC | 75% | View |
| DG201ACSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 75% | View |
| ADG211AKRZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16SOIC | 75% | View |
| DG202CSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 75% | View |
| ADG212AKP-REEL | Analog Devices Inc. | QUAD SPST SWITCH | 75% | View |
| DG201ABY | Harris Corporation | SPST ANALOG SWITCH, 4 FUNC | 75% | View |
Submit your RFQ for NJU7301M and get a quote within 24 hours.
